Base class for the concrete value classes CIntegerValue, CFloatValue and CStringValue. More...

#include "api/value.h"

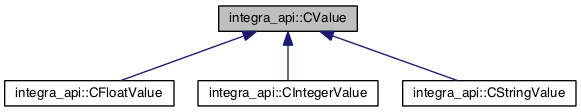

Inheritance diagram for integra_api::CValue:

Public Types
enum	type { INTEGER, FLOAT, STRING }

Public Member Functions
virtual type	get_type () const =0
	Get this value's type (see type)

virtual	operator int () const
	Cast to an integer. More...

virtual	operator float () const
	Cast to a float. More...

virtual	operator const string & () const
	Cast to a string. More...

virtual CValue *	clone () const =0
	Creates copy of value. More...

virtual void	convert (CValue &conversion_target) const =0
	Converts value into another type. More...

virtual bool	is_equal (const CValue &other) const =0
	Compares values. More...

virtual float	get_distance (const CValue &other) const =0
	Obtain an arbitrary measure of magnitude of different between values. More...

virtual string	get_as_string () const =0
	Convert value to string.

virtual void	set_from_string (const string &source)=0
	Set value from string. More...

CValue *	transmogrify (type new_type) const
	Copy into new value of different type. More...

Static Public Member Functions
static CValue *	factory (type new_type)
	Create new CValue of specified type. More...

static const char *	get_type_name (type value_type)
	Get string representation of value type.

static int	type_to_ixd_code (type value_type)
	convert value type to ixd code More...

static type	ixd_code_to_type (int ixd_code)
	convert ixd code to value type More...

Detailed Description

Base class for the concrete value classes CIntegerValue, CFloatValue and CStringValue.

Value classes are used to represent values of stateful node endpoints. The common base class CValue allows their generic (type-agnostic) manipulation and storage wherever possible

Member Enumeration Documentation

enum integra_api::CValue::type

enumeration of value types

Enumerator
INTEGER	Integers are signed 32 bit values
FLOAT	Floats are single-precision
STRING	Strings are ANSI

Member Function Documentation

virtual CValue* integra_api::CValue::clone ( ) const

pure virtual

Creates copy of value.

Creates a CValue of same type and value, allocated on the heap with new

Implemented in integra_api::CStringValue, integra_api::CFloatValue, and integra_api::CIntegerValue.

virtual void integra_api::CValue::convert ( CValue & conversion_target ) const

pure virtual

Converts value into another type.

Copies value into conversion_target, retaining as much information as possible when types differ

Implemented in integra_api::CStringValue, integra_api::CFloatValue, and integra_api::CIntegerValue.

static CValue* integra_api::CValue::factory ( type new_type )

static

Create new CValue of specified type.

New value is created with default state (zero or empty string) The new value is allocated on the heap

virtual float integra_api::CValue::get_distance ( const CValue & other ) const

pure virtual

Obtain an arbitrary measure of magnitude of different between values.

Expects types to be the same. For numeric types, distance is actually abs( difference ) For strings, distance is taken as the levenshtein_distance (http://en.wikipedia.org/wiki/Levenshtein_distance

Parameters

other Value to compare

Returns: a distance value if values are of same type, or -1 if types differ

Implemented in integra_api::CStringValue, integra_api::CFloatValue, and integra_api::CIntegerValue.

virtual bool integra_api::CValue::is_equal ( const CValue & other ) const

pure virtual

Compares values.

Parameters

other Value to compare

Returns: true if values are of same type and equal value, otherwise false

Implemented in integra_api::CStringValue, integra_api::CFloatValue, and integra_api::CIntegerValue.

static type integra_api::CValue::ixd_code_to_type ( int ixd_code )

static

convert ixd code to value type

ixd codes are numerical representations of value types used in ixd files. Used for loading .integra files.

virtual integra_api::CValue::operator const string & ( ) const

virtual

Cast to a string.

See operator int() for further discussion of CValue's casting operators

Reimplemented in integra_api::CStringValue.

virtual integra_api::CValue::operator float ( ) const

virtual

Cast to a float.

See operator int() for further discussion of CValue's casting operators

Reimplemented in integra_api::CFloatValue.

virtual integra_api::CValue::operator int ( ) const

virtual

Cast to an integer.

These cast operations are provided in CValue to minimise clutter in the calling code by removing the need for dynamic downcasting to query the value of subclasses. However, it is the caller's responsibilty to ensure that only the right downcast operator is used. For example, the caller ,ust only ever cast a CFloatValue to float, and so on. Type-incorrect casting will cause libIntegra to trace an error and throw an assertion failure.

Reimplemented in integra_api::CIntegerValue.

virtual void integra_api::CValue::set_from_string ( const string & source )

pure virtual

Set value from string.

Note: when setting a numerical value, if conversion is not possible, the value is set to 0

Implemented in integra_api::CStringValue, integra_api::CFloatValue, and integra_api::CIntegerValue.

CValue* integra_api::CValue::transmogrify ( type new_type ) const

Copy into new value of different type.

Creates new value of specified type, and store type-converted current value in new value, retaining as much information as possible when types differ. The new value is allocated on the heap

static int integra_api::CValue::type_to_ixd_code ( type value_type )

static

convert value type to ixd code

ixd codes are numerical representations of value types used in ixd files. Used for saving .integra files.

The documentation for this class was generated from the following file:

/Users/jamie/Documents/IntegraLive/libIntegra/api/value.h
